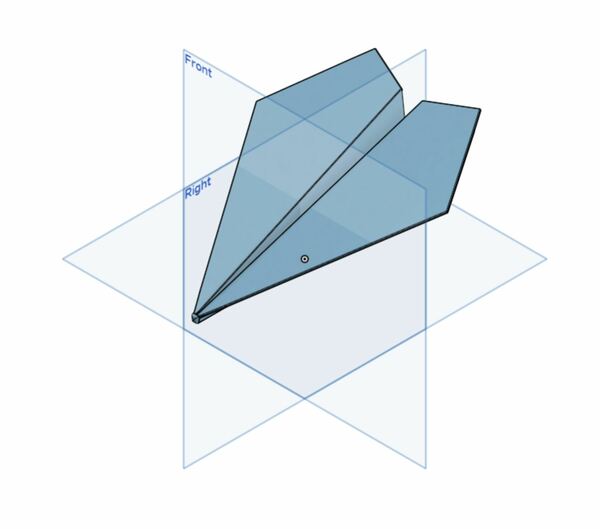

Description: Final iteration of glider project for AA119N
Project views: 31
Project status: In Fabrication Now accepting: Fabrication Bids
Design Type-Tier: simple-bronze
Design Price: US$995.00 | Payment Pending
Fabrication Price: Payment Pending
Order Number: 20200531164136-1670-01-0
Material desired: plastic (nylon or one suited for MJF)
Quantity desired: 1
Design File Parameters:
x dimension [mm]: 120.00
y dimension [mm]: 147.78
z dimension [mm]: 59.62
y dimension [mm]: 147.78
z dimension [mm]: 59.62
area [mm^2]: 35991.72
volume [mm^3]: 27555.85
total vol (qty: 1)[mm^3]: 27555.85
volume [mm^3]: 27555.85
total vol (qty: 1)[mm^3]: 27555.85
Additional Information: I changed this design by adding more fillets and curvatures to improve the design and functionality.
